전기도금을 하는 전력 공급
>
24v 4000a Air-cooled IGBT Rectifier For Electroplating & Anodizing

24v 4000a Air-cooled IGBT Rectifier For Electroplating & Anodizing

브랜드 이름: Xingtongli
모델 번호: GKD24-4000CVC
모크: 1pcs
가격: 7000-9300$/unit
포장에 대한 세부 사항: strong plywood standard exporting package
지불 조건: L/C,D/A,D/P,T/T,Western Union,MoneyGram
자세한 정보
Place of Origin:
China
인증:
CE ISO9001
Supply Ability:
200 Set/Sets per Month
강조하다:

24v 4000a electroplating power supply

,

air-cooled IGBT rectifier for electroplating

,

anodizing power supply with IGBT rectifier

제품 설명
24V 4000A Air-cooled IGBT Rectifier For Electroplating & Anodizing
Product Detailed Description

Ideal for large-scale plating and metal finishing projects, this 24V 4000A rectifier ensures precise current control and consistent quality. Its durable construction and efficient cooling system support long hours of uninterrupted operation in demanding environments.

Technical Parameters
  • Input Power: Three-phase 440V AC ±15%, 50/60Hz
  • Output Capability:
    • Voltage: DC 0-24V continuously adjustable
    • Current: DC 0-4000A continuously adjustable
    • Power: Max. 96kW (24V × 4000A)
  • Regulation Accuracy: Voltage ±1%, Current ±1%
  • Efficiency: ≥89% (high-frequency IGBT soft-switching technology)
  • Cooling System: Intelligent temperature-controlled fan (low noise, load-adaptive speed adjustment)
  • Communication Interface: DP interface (RS485, Modbus protocol support)
  • Protection Features: Over-voltage, over-current, short-circuit, overheating, input surge protection
  • Control Modes: Local keypad control / remote communication control (auto CC/CV switching)
  • Display Interface: LCD screen (real-time voltage, current, fault codes)
  • Operating Temperature: -10℃ to +45℃
  • Protection Rating: IP20 (basic dust protection)
Typical Applications
  • Small-Batch Electroplating: Gold/silver plating for jewelry, nickel plating for hardware accessories.
  • Electrolytic Repair: Mold surface restoration, metal part derusting.
  • Laboratory Research: Electrochemical experiments, power supply for small electrolytic cells.
  • Vocational Training: Electroplating process teaching equipment for technical institutes.

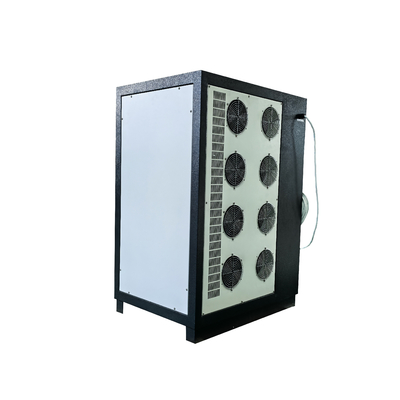

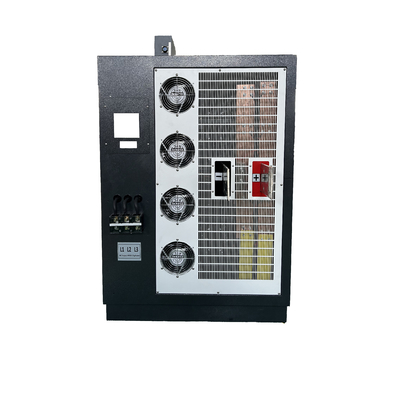

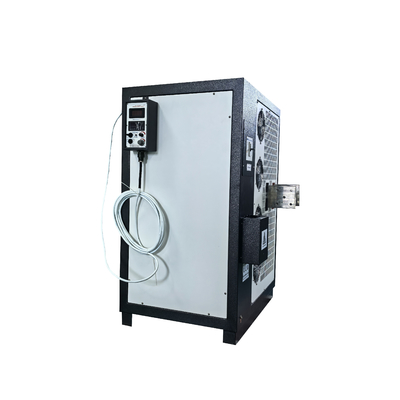

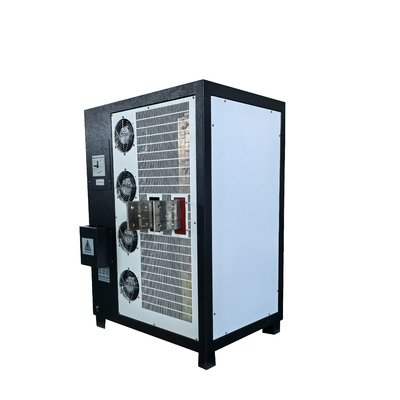

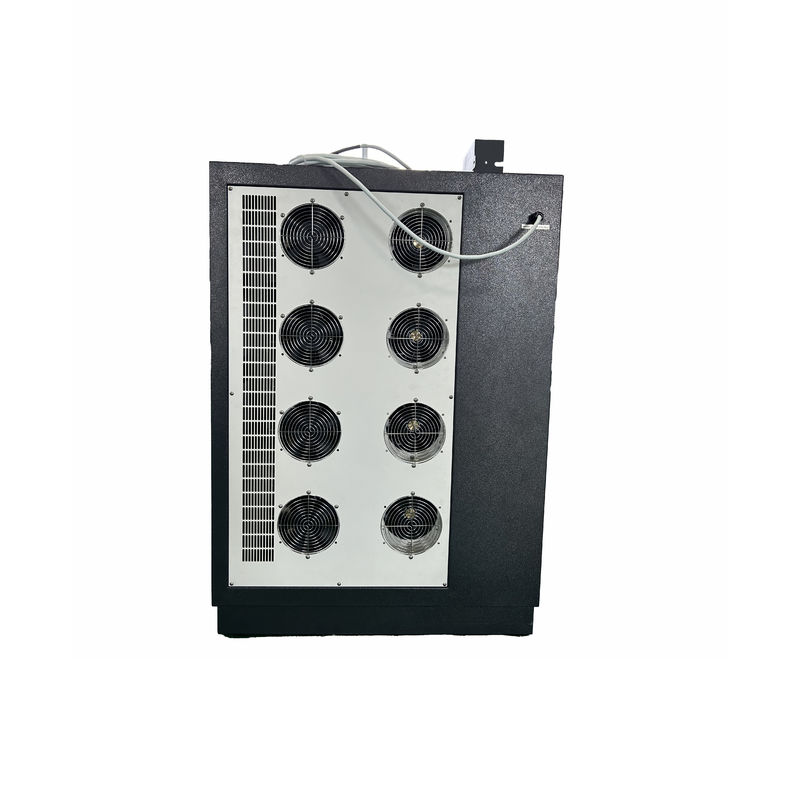

24v 4000a Air-cooled IGBT Rectifier For Electroplating & Anodizing 0
24v 4000a Air-cooled IGBT Rectifier For Electroplating & Anodizing 1
