전기도금을 하는 전력 공급
>
12V 2500A High Current Industrial Rectifier

12V 2500A High Current Industrial Rectifier

브랜드 이름: Xingtongli
모델 번호: GKD12-2500CVC
모크: 1pcs
가격: 1415-1890$/unit
포장에 대한 세부 사항: 강력한 합판 표준 내보내기 패키지
지불 조건: L/C, D/A, D/P, T/T, Western Union, MoneyGram
자세한 정보
원래 장소:
중국
인증:
CE ISO9001
공급 능력:
한 달에 200 세트/세트
제품 설명
12V 2500A High Current Industrial Rectifier

The 12V 2500A rectifier provides ultra-high current DC output with stable performance and high efficiency. It is widely used in electroplating, electrolysis, hydrogen production, water treatment, and other heavy-duty industrial applications. Built with a robust design, it supports long-term continuous operation with reliable quality and durability.


Technical Specifications
  • Input Power: Three-phase 415V AC ±15%, 50/60Hz
  • Output Capability:
    • Voltage: DC 0-12V continuously adjustable
    • Current: DC 0-2500A continuously adjustable
    • Power: Max.30KW (12V ×2500A)
  • Regulation Accuracy: Voltage ±1%, Current ±1%
  • Efficiency: ≥90% (IGBT high-frequency soft-switching technology)
  • Cooling System: Intelligent forced air cooling (temperature-controlled variable-speed fans, low noise)
  • Protection Features: Over-voltage, over-current, short-circuit, overheating, phase loss, and input surge protection
  • Control Modes: Auto-switching between CV/CC modes; supports local keypad or remote RS485 communication (Modbus protocol)
  • Display Interface: LED/liquid crystal screen for real-time voltage, current, and status alerts
  • Operating Temperature: -10℃ to +50℃
  • Protection Rating: IP21 (dust and drip-proof)

Key Advantages
  • Flexible Adaptation: CC/CV auto-switching ensures precise control for electroplating processes.
  • Energy Efficiency: IGBT high-frequency inversion reduces energy loss, saving 10%-15% compared to traditional SCR rectifiers.
  • Compact Design: Space-saving and lightweight, suitable for workshops or labs.
  • Smart Thermal Management: Fans adjust speed based on load temperature, balancing cooling and noise.
  • High Compatibility: Wide input voltage range (±15%) accommodates grid fluctuations.

Applications
  • Precision Electroplating: Gold/silver plating, PCB electroplating, and other current-sensitive processes.
  • Small-Scale Electrolysis: Lab-based water electrolysis, precious metal refining.
  • Surface Treatment: Anodizing, electrophoretic coating, metal polishing.
  • R & D & Education: Electrochemical experiments in universities and research institutes.

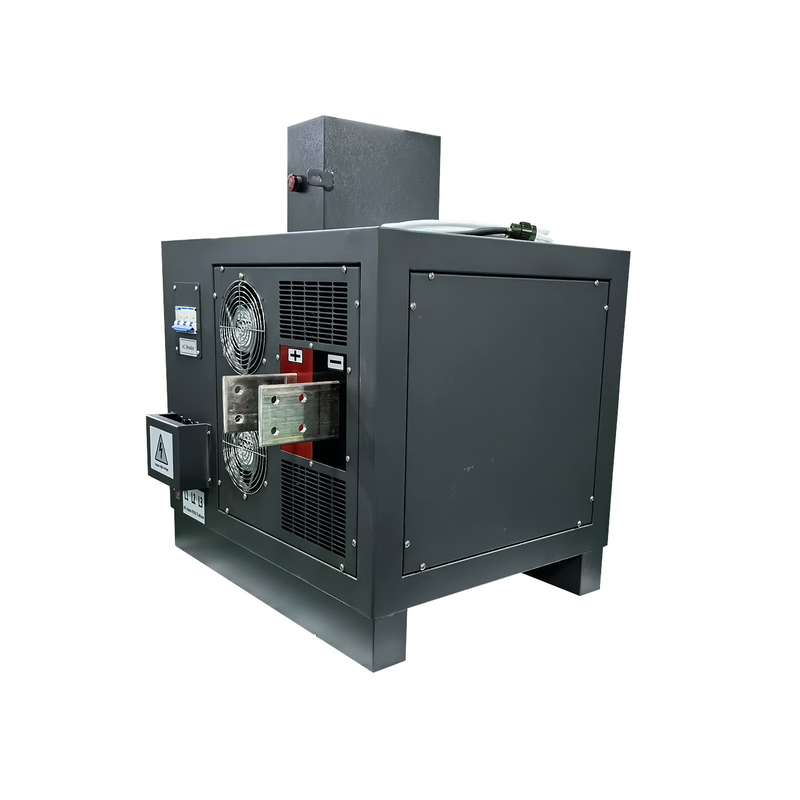

  • 12V 2500A High Current Industrial Rectifier 0

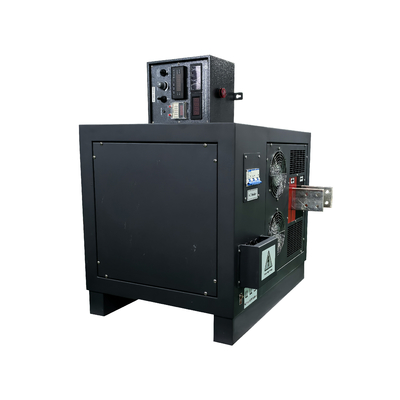

  • 12V 2500A High Current Industrial Rectifier 1

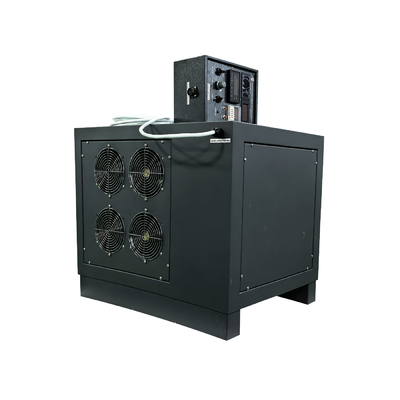

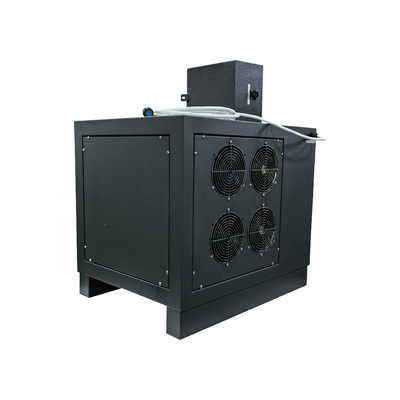

  • 12V 2500A High Current Industrial Rectifier 2
