전기도금을 하는 전력 공급
>
High Current 30V 500A DC Power Supply for Metal Finishing

High Current 30V 500A DC Power Supply for Metal Finishing

브랜드 이름: Xingtongli
모델 번호: GKD30-500CVC
모크: 1pcs
가격: 1050-1400$/unit
포장에 대한 세부 사항: 강력한 합판 표준 내보내기 패키지
지불 조건: L/C, D/A, D/P, T/T, Western Union, MoneyGram
자세한 정보
원래 장소:
중국
인증:
CE ISO9001
공급 능력:
한 달에 200 세트/세트
제품 설명

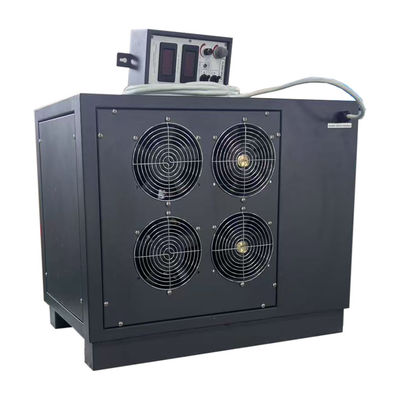

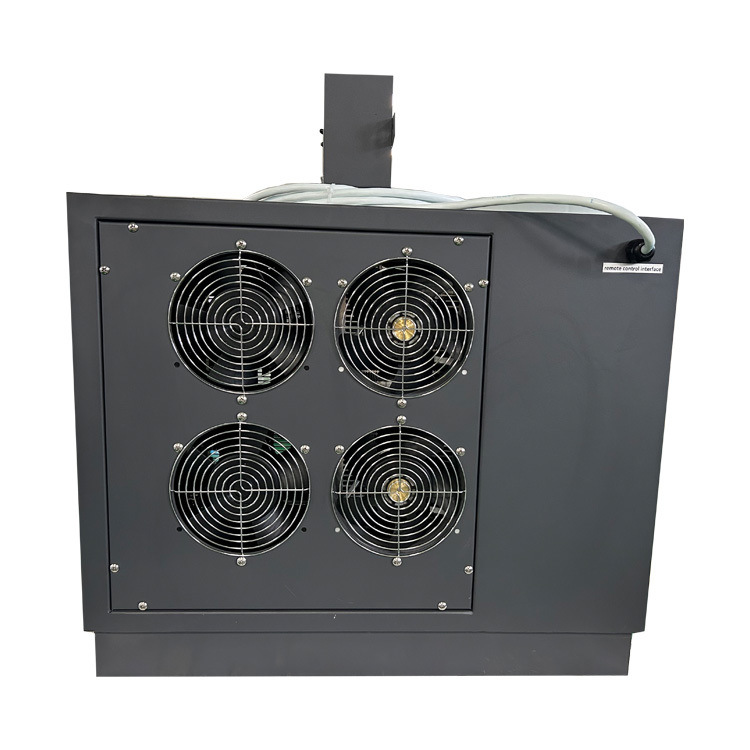

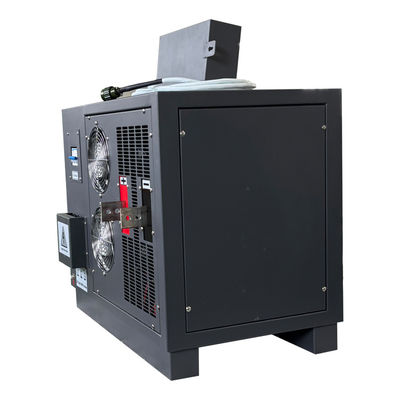

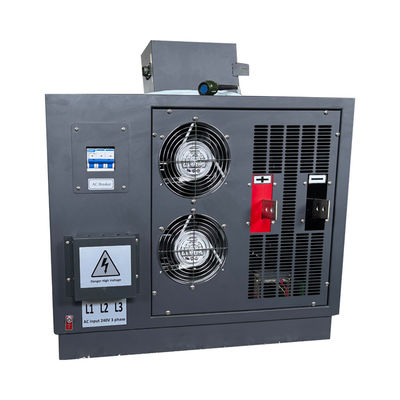

High Current 30V 500A DC Power Supply for Metal Finishing

The 30V 500A rectifier power supply delivers stable and precise DC output, designed for electroplating, anodizing, electrolysis, and other industrial applications. With adjustable voltage and current, high efficiency, and reliable performance, it ensures consistent plating quality and supports continuous production in large-scale operations.



Technical Specifications
  • Input Power: three-phase 240V AC ±10%, 50/60Hz
  • Output Capability:
    • Voltage: DC 0-30V continuously adjustable
    • Current: DC 0-500A continuously adjustable
    • Power: Max.15KW (30V ×500A)
  • Regulation Accuracy: Voltage ±1%, Current ±1%
  • Efficiency: ≥85% (IGBT high-frequency soft-switching technology)
  • Cooling System: Intelligent forced air cooling (temperature-controlled variable-speed fans, low noise)
  • Protection Features: Over-voltage, over-current, short-circuit, overheating, phase loss, and input surge protection
  • Control Modes: Auto-switching between CV/CC modes; supports local keypad or remote RS485 communication (Modbus protocol);local panel control
  • Display Interface: LED/liquid crystal screen for real-time voltage, current, and status alerts
  • Operating Temperature: -10℃ to +50℃
  • Protection Rating: IP21 (dust and drip-proof)

Key Advantages
  • Flexible Adaptation: CC/CV auto-switching ensures precise control for electroplating processes.
  • Energy Efficiency: IGBT high-frequency inversion reduces energy loss, saving 10%-15% compared to traditional SCR rectifiers.
  • Compact Design: Space-saving and lightweight, suitable for workshops or labs.
  • Smart Thermal Management: Fans adjust speed based on load temperature, balancing cooling and noise.
  • High Compatibility: Wide input voltage range (±15%) accommodates grid fluctuations.

Applications
  • Precision Electroplating: Gold/silver plating, PCB electroplating, and other current-sensitive processes.
  • Small-Scale Electrolysis: Lab-based water electrolysis, precious metal refining.
  • Surface Treatment: Anodizing, electrophoretic coating, metal polishing.
  • R & D & Education: Electrochemical experiments in universities and research institutes.
  • High Current 30V 500A DC Power Supply for Metal Finishing 0
  • High Current 30V 500A DC Power Supply for Metal Finishing 1
