12V 200A Pure DC Power Supply with 220V AC Input

12V 200A Pure DC Power Supply with 220V AC Input

브랜드 이름: Xingtongli
모델 번호: GKD12-200CVC
모크: 1개
가격: 450-600$/unit
포장에 대한 세부 사항: 강력한 합판 표준 내보내기 패키지
지불 조건: L/C,D/A,D/P,T/T,웨스턴 유니온,MoneyGram
자세한 정보
원래 장소:
중국
인증:
CE ISO9001
공급 능력:
한 달에 200 세트/세트
강조하다:

12V 200A DC power supply

,

electroplating power supply 220V AC

,

pure DC power supply 200A

제품 설명

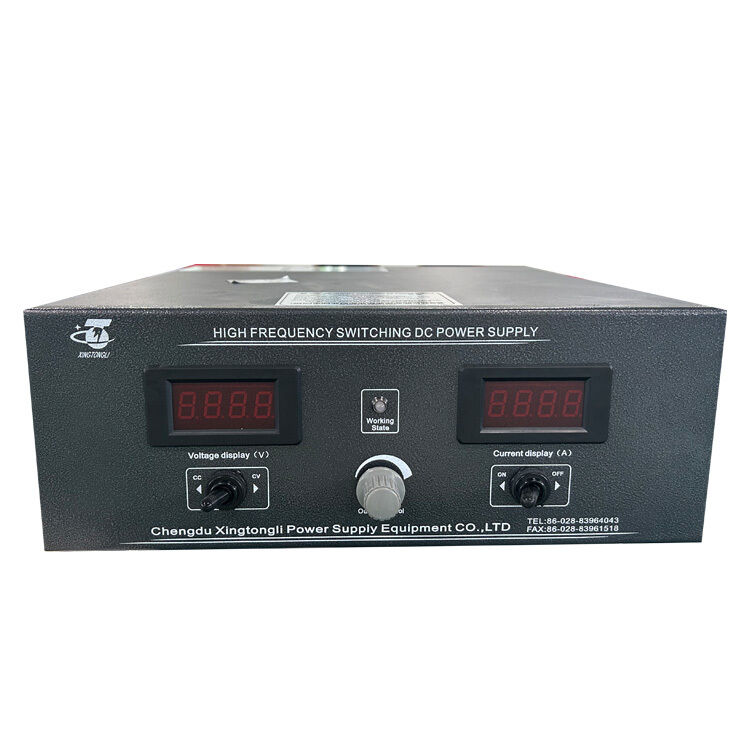

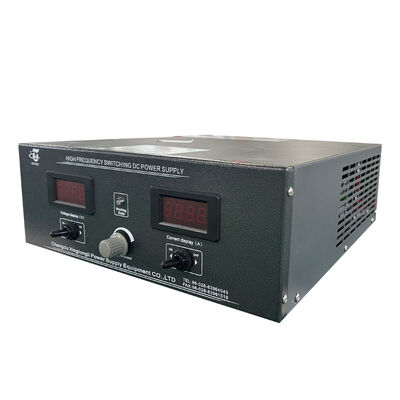

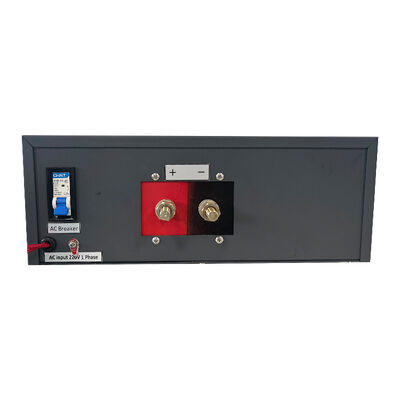

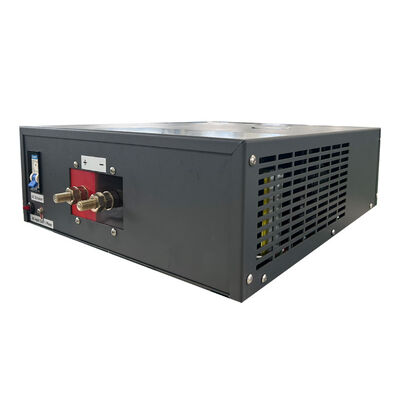

12V 200A Pure DC Power Supply with 220V AC Input

This 12V 200A pure DC power supply delivers ultra-stable, low-ripple output ideal for electroplating, laboratory testing, electronics manufacturing, and other precision DC applications. Designed for 220V AC input, it features high efficiency, fast response, and a reliable IGBT-based design. Built-in protections—including over-voltage, over-current, over-temperature, and short-circuit protection—ensure safe and consistent operation in industrial environments.

Technical Specifications
  • Input Power: single-phase 220V AC ±10%, 50/60Hz
  • Output Capability:
    • Voltage: DC 0-12V continuously adjustable
    • Current: DC 0-200A continuously adjustable
    • Power: Max.2.4KW (12V *200A)
  • Regulation Accuracy: Voltage ±1%, Current ±1%
  • Efficiency: ≥85% (IGBT high-frequency soft-switching technology)
  • Cooling System: Intelligent forced air cooling (temperature-controlled variable-speed fans, low noise)
  • Protection Features: Over-voltage, over-current, short-circuit, overheating, phase loss, and input surge protection
  • Control Modes: Auto-switching between CV/CC modes; supports local keypad or remote RS485 communication (Modbus protocol);local panel control
  • Display Interface: LED/liquid crystal screen for real-time voltage, current, and status alerts
  • Operating Temperature: -10℃ to +50℃
  • Protection Rating: IP21 (dust and drip-proof)
Key Advantages
  • Flexible Adaptation: CC/CV auto-switching ensures precise control for electroplating processes.
  • Energy Efficiency: IGBT high-frequency inversion reduces energy loss, saving 10%-15% compared to traditional SCR rectifiers.
  • Compact Design: Space-saving and lightweight, suitable for workshops or labs.
  • Smart Thermal Management: Fans adjust speed based on load temperature, balancing cooling and noise.
  • High Compatibility: Wide input voltage range (±15%) accommodates grid fluctuations.
Applications
  • Precision Electroplating: Gold/silver plating, PCB electroplating, and other current-sensitive processes.
  • Small-Scale Electrolysis: Lab-based water electrolysis, precious metal refining.
  • Surface Treatment: Anodizing, electrophoretic coating, metal polishing.
  • R & D & Education: Electrochemical experiments in universities and research institutes.
  • 12V 200A Pure DC Power Supply with 220V AC Input 0
  • 12V 200A Pure DC Power Supply with 220V AC Input 1
