전기도금을 하는 전력 공급
>

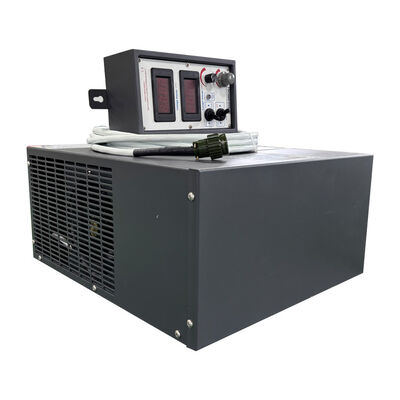

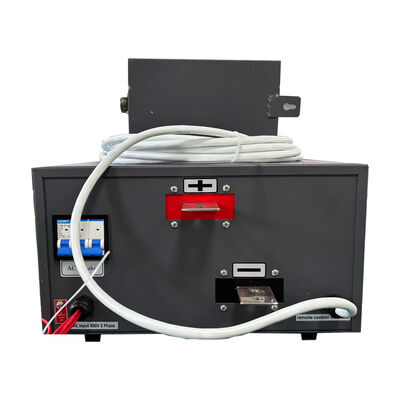

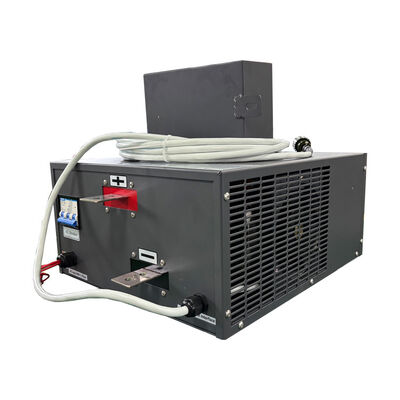

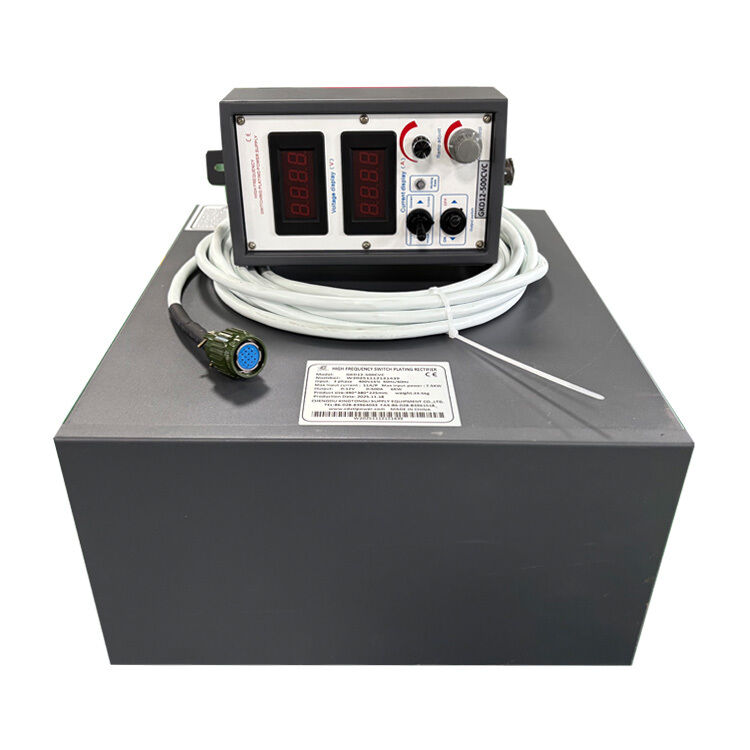

12V 500A Industrial Electroplating Rectifier – 400V Three-Phase Input High-Efficiency DC Power Supply

12V 500A Industrial Electroplating Rectifier – 400V Three-Phase Input High-Efficiency DC Power Supply

브랜드 이름: Xingtongli
모델 번호: GKD12-500CVC
모크: 1개
가격: 580-710$/unit
포장에 대한 세부 사항: 강력한 합판 표준 내보내기 패키지
지불 조건: L/C,D/A,D/P,T/T,웨스턴 유니온,MoneyGram
자세한 정보
원래 장소:
중국
인증:
CE ISO9001
공급 능력:
한 달에 200 세트/세트
강조하다:

12V 500A electroplating rectifier

,

400V three-phase DC power supply

,

high-efficiency electroplating power supply

제품 설명
12V 500A Industrial Electroplating Rectifier – 400V Three-Phase Input High-Efficiency DC Power Supply

This 12V 500A electroplating rectifier is engineered for heavy-duty surface treatment applications requiring stable and precise DC output. Powered by a robust 400V three-phase input, it uses advanced IGBT switching technology to deliver high efficiency and low ripple, ensuring superior plating quality. The unit supports accurate voltage and current control, reliable continuous operation, and multiple built-in protection features. Ideal for chrome, nickel, zinc, copper, and other electroplating processes, it provides consistent performance for industrial production lines.



Technical Specifications
  • Input Power: three-phase 400V AC ±5%, 50/60Hz
  • Output Capability:
    • Voltage: DC 0-12V continuously adjustable
    • Current: DC 0-500A continuously adjustable
    • Power: Max.6KW (12V ×500A)
  • Regulation Accuracy: Voltage ±1%, Current ±1%
  • Efficiency: ≥85% (IGBT high-frequency soft-switching technology)
  • Cooling System: Intelligent forced air cooling (temperature-controlled variable-speed fans, low noise)
  • Protection Features: Over-voltage, over-current, short-circuit, overheating, phase loss, and input surge protection
  • Control Modes: Auto-switching between CV/CC modes; supports local keypad or remote RS485 communication (Modbus protocol);local panel control
  • Display Interface: LED/liquid crystal screen for real-time voltage, current, and status alerts
  • Operating Temperature: -10℃ to +50℃
  • Protection Rating: IP21 (dust and drip-proof)

Key Advantages
  • Flexible Adaptation: CC/CV auto-switching ensures precise control for electroplating processes.
  • Energy Efficiency: IGBT high-frequency inversion reduces energy loss, saving 10%-15% compared to traditional SCR rectifiers.
  • Compact Design: Space-saving and lightweight, suitable for workshops or labs.
  • Smart Thermal Management: Fans adjust speed based on load temperature, balancing cooling and noise.
  • High Compatibility: Wide input voltage range (±15%) accommodates grid fluctuations.

Applications
