전기도금을 하는 전력 공급
>

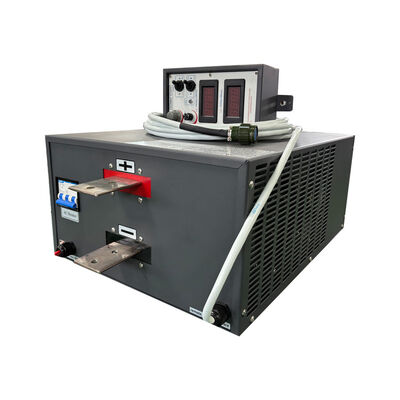

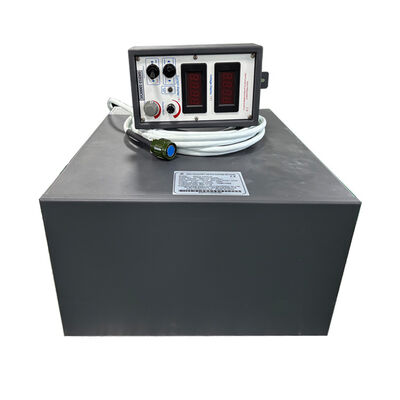

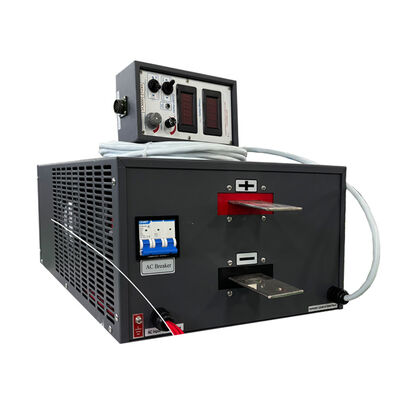

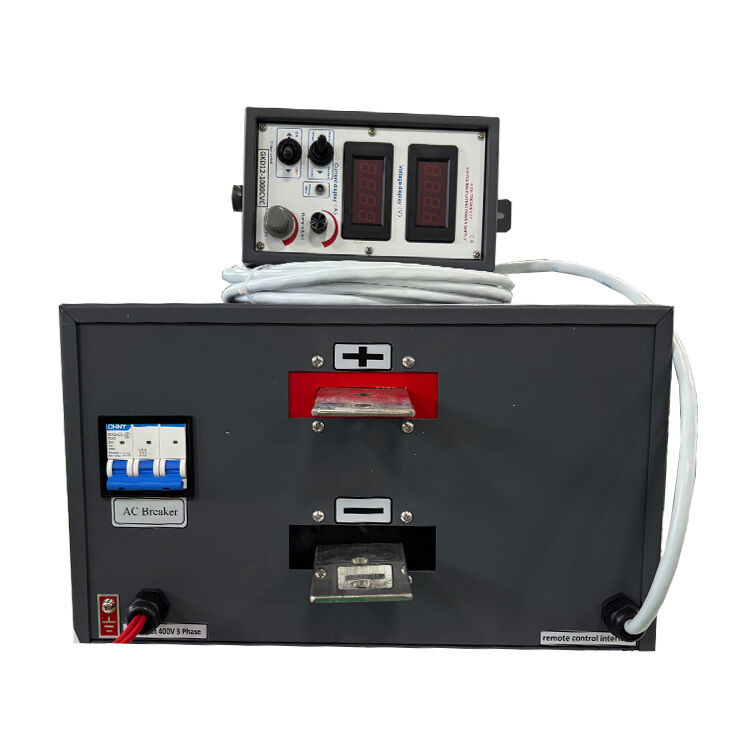

High-Capacity 12V 1000A Plating Rectifier — 400V 3-Phase Input Industrial DC Power System

High-Capacity 12V 1000A Plating Rectifier — 400V 3-Phase Input Industrial DC Power System

브랜드 이름: Xingtongli
모델 번호: GKD12-1000CVC
모크: 1개
가격: 965-1180$/unit
포장에 대한 세부 사항: 강력한 합판 표준 내보내기 패키지
지불 조건: L/C,D/A,D/P,T/T,웨스턴 유니온,MoneyGram
자세한 정보
원래 장소:
중국
인증:
CE ISO9001
공급 능력:
한 달에 200 세트/세트
강조하다:

12V 1000A plating rectifier

,

industrial DC power system

,

400V 3-phase electroplating supply

제품 설명
High-Capacity 12V 1000A Plating Rectifier — 400V 3-Phase Input Industrial DC Power System

Designed for demanding electroplating applications, this 12V 1000A rectifier delivers exceptional stability and high output efficiency. Powered by a 400V three-phase input, it utilizes advanced IGBT technology to ensure low ripple, precise voltage/current control, and reliable long-term operation. Its robust design supports heavy-load plating processes such as chrome, nickel, zinc, and copper, making it ideal for continuous industrial production lines. Integrated protections and programmable functions further enhance safety, consistency, and process control.



Technical Specifications
  • Input Power: three-phase 400V AC ±5%, 50/60Hz
  • Output Capability:
    • Voltage: DC 0-12V continuously adjustable
    • Current: DC 0-1000A continuously adjustable
    • Power: Max.12KW (12V ×1000A)
  • Regulation Accuracy: Voltage ±1%, Current ±1%
  • Efficiency: ≥85% (IGBT high-frequency soft-switching technology)
  • Cooling System: Intelligent forced air cooling (temperature-controlled variable-speed fans, low noise)
  • Protection Features: Over-voltage, over-current, short-circuit, overheating, phase loss, and input surge protection
  • Control Modes: Auto-switching between CV/CC modes; supports local keypad or remote RS485 communication (Modbus protocol);local panel control
  • Display Interface: LED/liquid crystal screen for real-time voltage, current, and status alerts
  • Operating Temperature: -10℃ to +50℃
  • Protection Rating: IP21 (dust and drip-proof)

Key Advantages
  • Flexible Adaptation: CC/CV auto-switching ensures precise control for electroplating processes.
  • Energy Efficiency: IGBT high-frequency inversion reduces energy loss, saving 10%-15% compared to traditional SCR rectifiers.
  • Compact Design: Space-saving and lightweight, suitable for workshops or labs.
  • Smart Thermal Management: Fans adjust speed based on load temperature, balancing cooling and noise.
  • High Compatibility: Wide input voltage range (±15%) accommodates grid fluctuations.

Applications
