고전압 DC 전력 공급 장치
>
12V 1000A Electroplating Rectifier 400V Three Phase DC Power Supply

12V 1000A Electroplating Rectifier 400V Three Phase DC Power Supply

브랜드 이름: Xingtongli
모델 번호: GKD12-1000CVC
모크: 1개
가격: 900-1300$/unit
포장에 대한 세부 사항: 강한 합판 표준 수출 패키지
지불 조건: L/C,D/A,D/P,T/T,웨스턴 유니온,MoneyGram
자세한 정보
원래 장소:
중국
인증:
CE ISO9001
공급 능력:
달 당 200 세트/세트
강조하다:

12V 1000A electroplating rectifier

,

400V three phase DC power supply

,

high voltage DC power supply with warranty

제품 설명

12V 1000A Electroplating Rectifier 400V Three Phase DC Power Supply

The 12V 1000A electroplating rectifier is designed for industrial electroplating applications that require stable and accurate DC power. With a 400V three-phase AC input, it provides adjustable constant current and constant voltage output for zinc, nickel, chrome, copper, silver, gold, and hard chrome plating. Built with high-frequency IGBT technology, the rectifier offers high efficiency, low ripple, and multiple protection functions, ensuring reliable operation and consistent plating quality in demanding industrial environments.

Technical Specifications
  • Input Power: three-phase 400V AC ±5%, 50/60Hz
  • Output Capability:
    • Voltage: DC 0-12V continuously adjustable
    • Current: DC 0-1000A continuously adjustable
    • Power: Max 12KW (12V *1000A)
  • Regulation Accuracy: Voltage ±1%, Current ±1%
  • Efficiency: ≥85% (IGBT high-frequency soft-switching technology)
  • Cooling System: Intelligent forced air cooling (temperature-controlled variable-speed fans, low noise)
  • Protection Features: Over-voltage, over-current, short-circuit, overheating, phase loss, and input surge protection
  • Control Modes: Auto-switching between CV/CC modes; supports local keypad or remote RS485 communication (Modbus protocol);local panel control
  • Display Interface: LED/liquid crystal screen for real-time voltage, current, and status alerts
  • Operating Temperature: -10℃ to +50℃
  • Protection Rating: IP21 (dust and drip-proof)

Key Advantages
  • Flexible Adaptation: CC/CV auto-switching ensures precise control for electroplating processes.
  • Energy Efficiency: IGBT high-frequency inversion reduces energy loss, saving 10%-15% compared to traditional SCR rectifiers.
  • Compact Design: Space-saving and lightweight, suitable for workshops or labs.
  • Smart Thermal Management: Fans adjust speed based on load temperature, balancing cooling and noise.
  • High Compatibility: Wide input voltage range (±15%) accommodates grid fluctuations.

Applications
  • Precision Electroplating: Gold/silver plating, PCB electroplating, and other current-sensitive processes.
  • Small-Scale Electrolysis: Lab-based water electrolysis, precious metal refining.
  • Surface Treatment: Anodizing, electrophoretic coating, metal polishing.
  • R & D & Education: Electrochemical experiments in universities and research institutes.

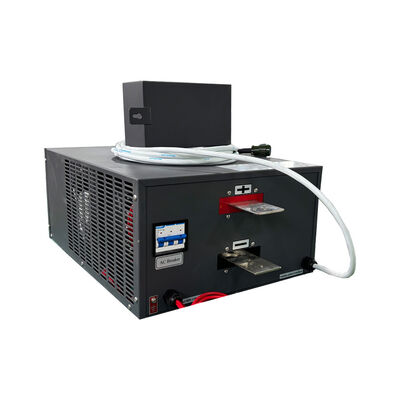

  • 12V 1000A Electroplating Rectifier 400V Three Phase DC Power Supply 0

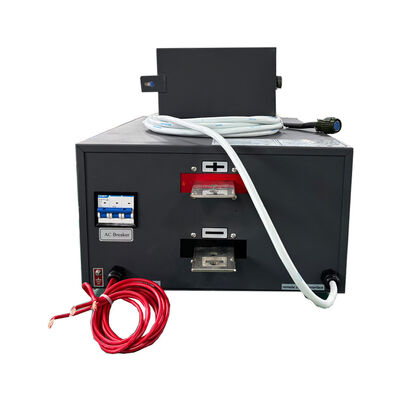

  • 12V 1000A Electroplating Rectifier 400V Three Phase DC Power Supply 1
